Actual models from projects on the workbench. Turn them around, get closer, and see how the pieces fit.

Interactive 3D / development projects

Turn it around.
Look closer.

These viewers load the actual CAD models. Select a project, then load the model to rotate and zoom.

01 / ZA FIELD NODE

A processor module from the ZA Field Node project, with communication ports and expansion connections.

M5 design revision · PCB development model

3D DEVELOPMENT MODEL

4.9 MB · Loads when you choose. Drag to rotate; scroll or pinch to zoom.

02 / DESKTOP TWO

A desktop audio project with tube stages, front-panel controls, meters, and a serviceable enclosure.

R08 design revision · Mechanical assembly model

Tube circuits can contain hazardous voltages. This model is for visual design review, not assembly or operating instructions.

3D DEVELOPMENT MODEL

40 MB · Loads when you choose. Drag to rotate; scroll or pinch to zoom.

03 / TUBE AUDIO

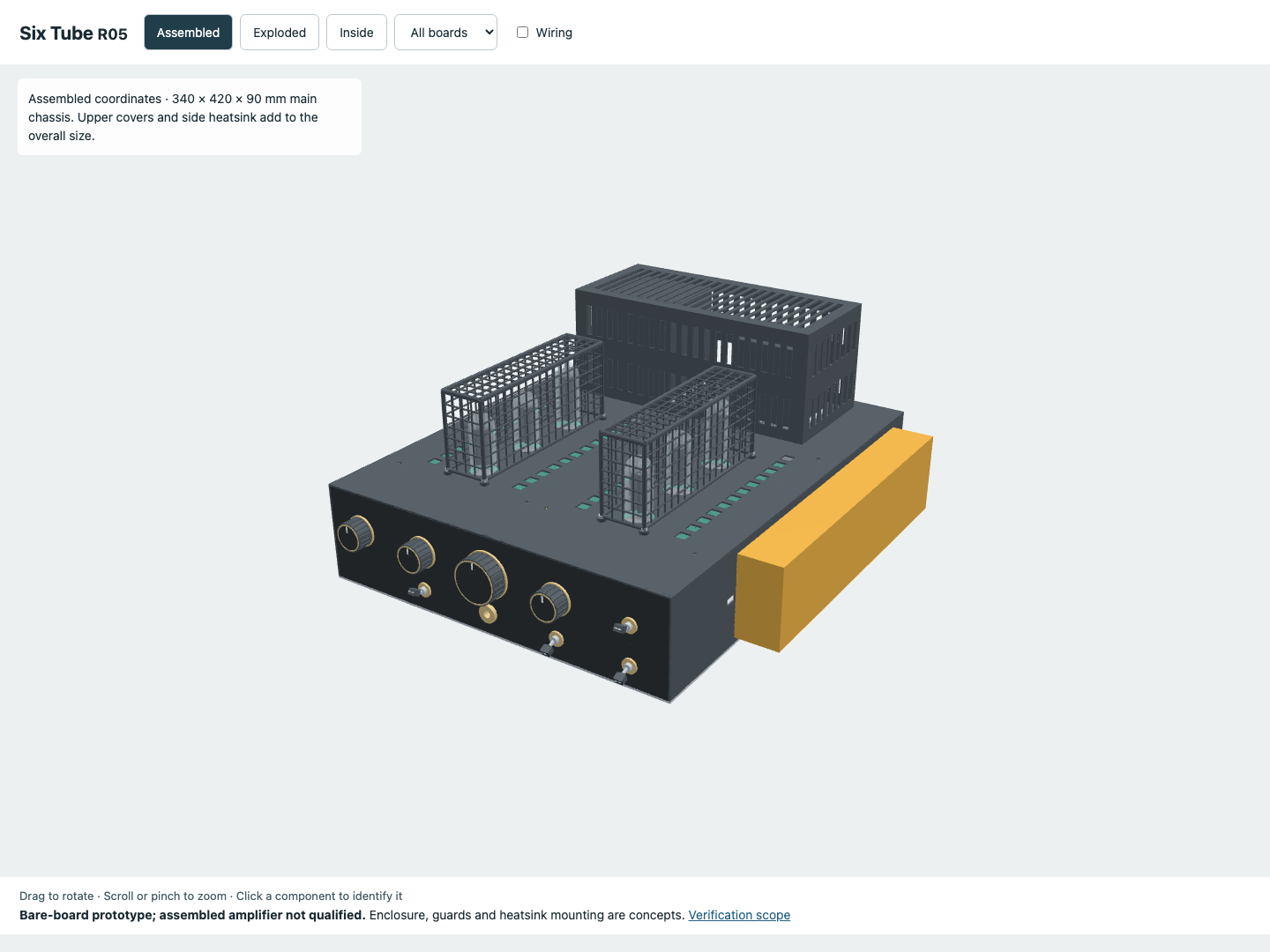

A larger chassis study with tube guards, internal assemblies, and panel details. Rotate the actual R05 assembly to inspect the design.

R05 · Development assembly

Visual design review only. Tube circuits can contain hazardous voltages.

3D DEVELOPMENT MODEL

15 MB · Loads when you choose. Drag to rotate; scroll or pinch to zoom.

04 / LIGHTING

The physical housing from the R1 lighting project. Explore the bowl and backplate geometry in 3D.

R1 · Housing geometry, not a finished or certified light

3D DEVELOPMENT MODEL

1.2 MB · Loads when you choose. Drag to rotate; scroll or pinch to zoom.
